額定機械功率

減速器型號	n₁/(r/min)	額定機械功率P_N1/kW
		公稱傳動比i_N
		4.0	4.5	5.0	5.6	6.3	7.1	8.0	9.0
2TKC90M	1800 1500 1200 1000	35.9 31.6^＋ 26.3^＋ 22.0^＋	35 29.4^＋ 23.7^＋ 20.0^＋	28.8^＋ 25.1^＋ 20.1^＋ 16.8^＋	27.3^＋ 22.9^＋ 18.7^＋ 15.7^＋	22.0^＋ 18.4^＋ 14.7^＋ 12.3^＋	20.3^＋ 17.3^＋ 13.9^＋ 11.6^＋	12.0^＋ 9.98^＋ 7.98^＋ 6.65^＋	11.6^＋ 9.70^＋ 7.76^＋ 6.47^＋
2TKC110M	1800 1500 1200 1000	75.8 66.5 56.6^＋ 48.3^＋	65.1 54.4 43.6^＋ 36.4^＋	60.9 53.6^＋ 45.3^＋ 38.1^＋	50.8 42.4^＋ 34.0^＋ 28.4^＋	49.2^＋ 41.9^＋ 34.0^＋ 28.3^＋	38.6^＋ 32.2^＋ 25.8^＋ 21.5^＋	31.9^＋ 26.6^＋ 21.3^＋ 17.7^＋	27.9^＋ 23.3^＋ 18.6^＋ 15.5^＋
2TKC140M	1800 1500 1200 1000	144 127 109 95.2^＋	141 118 95.1 80.1^＋	119 105 88.6^＋ 74.0^＋	111 92.9 75.9^＋ 65.1^＋	98.5 82.3^＋ 66.0^＋ 55.0^＋	84.2 71.7^＋ 59.3^＋ 50.8^＋	79.8^＋ 66.6^＋ 53.4^＋ 44.6^＋	69.8^＋ 59.8^＋ 49.4^＋ 41.4^＋
2TKC180M	1800 1500 1200 1000	251 221 189 166	257 227 194 171	237 208 177 155	235 207 172 143	181 160 136^＋ 120^＋	177 156 129^＋ 107^＋	151 133^＋ 113^＋ 95.4^＋	144 127^＋ 105^＋ 87.7^＋
2TKC225M	1800 1500 1200 1000	631^* 552 469 396	588^* 492 396 333	527 462 371 310	465 389 317 271	402 337 271 226^＋	351 299 247 207^＋	323 270 217^＋ 181^＋	293 250 203^＋ 169^＋
2TKC250M	1800 1500 1200 1000	787^* 689^* 585 492	791^* 679^* 546 459	647^* 568 470 391	638^* 533 434 372	493 434 357 298	493 434 357 298	415 365 296 247^＋	415 365 296 247^＋
2TKC280M	1800 1500 1200 1000	1044^* 914^* 777 680	1053^* 921^* 781 658	863^* 760 647 567	863^* 760 629 539	699 588 474 396	691 587 473 396	564 496 423 353^＋	564 496 408 341^＋
2TKC315M	1800 1500 1200 1000	1499^* 1205^* 1014	1321^* 1061^* 893	1054^* 852 714	1004^* 818 700	944^* 770 659	726^* 585 490	771^* 646^* 519 434	771^* 645^* 519 434
2TKC355M	1800 1500 1200 1000	2056^* 1645^* 1371^*	1927^* 1547^* 1300^*	1607^* 1286 1072	1570^* 1280 1072	1289^* 1051 899	1193^* 961 805	840^* 676 565	840^* 675 565
2TKC400M	1800 1500 1200 1000	2819^* 2290^* 1928^*	2606^* 2097^* 1755^*	2343^* 1874^* 1562	2137^* 1718^* 1436	1848^* 1507^* 1289	1664^* 1340 1120	1320^* 1062 888	1320^* 1061 887

減速器型號	n₁/(r/min)	額定機械功率P_N1/kW
		公稱傳動比i_N
		10	11.2	12.5	14	16	18	20
2TKC90M	1800 1500 1200 1000	9.80+ 8.17+ 6.55+ 5.46+	8.81+ 7.34+ 5.88+ 4.90+	7.32+ 6.11+ 4.89+ 4.09+	4.83+ 4.03+ 3.23+ 2.71+	4.55+ 3.99+ 3.39+ 2.97+	3.70+ 3.09+ 2.49+ 2.09+	3.25+ 2.72+ 2.20+ 1.85+
2TKC110M	1800 1500 1200 1000	23.3+ 19.5+ 15.6+ 13.0+	19.9+ 16.6+ 13.3+ 11.1+	16.9+ 14.1+ 11.3+ 9.44+	14.2+ 12.2+ 9.92+ 8.31+	9.06+ 7.97+ 6.82+ 5.98+	9.06+ 7.97+ 6.82+ 6.00+	8.58+ 7.22+ 5.85+ 4.92+
2TKC140M	1800 1500 1200 1000	57.8+ 49.5+ 41.0+ 35.1+	46.6+ 39.2+ 31.6+ 26.6+	40.9+ 35.0+ 29.0+ 24.9+	30.8+ 25.7+ 20.6+ 17.2+	23.8+ 20.9+ 17.1+ 14.3+	23.7+ 19.8+ 16.0+ 13.4+	17.2+ 14.4+ 11.7+ 9.81+
2TKC180M	1800 1500 1200 1000	122 104+ 84.3+ 70.3+	107+ 89.5+ 72.1+ 60.1+	86.0+ 73.2+ 58.6+ 49.0+	68.9+ 59.0+ 48.8+ 41.8+	52.7+ 44.2+ 35.7+ 30.0+	53.3+ 44.8+ 36.1+ 30.3+	43.9+ 38.7+ 32.0+ 26.9+
2TKC225M	1800 1500 1200 1000	239 205 169+ 145+	207 173+ 139+ 116+	193 165+ 136+ 116+	153 129+ 104+ 86.8+	105+ 88.0+ 71.1+ 59.7+	106+ 89.0+ 71.9+ 60.3+	86.6+ 72.8+ 58.7+ 49.2+
2TKC250M	1800 1500 1200 1000	371 310 249 207+	272 228 183+ 152+	272 227 183+ 152+	251 213 170+ 143+	130 115+ 98.1+ 86.2+	130 115+ 98.1+ 86.4+	130 115+ 98.1+ 86.4+
2TKC280M	1800 1500 1200 1000	555 475 393 337+	377 315 253+ 211+	377 315 253+ 211+	349 299 243+ 204+	215 183+ 148+ 124+	215 186+ 149+ 125+	172 144+ 116+ 97.5+
2TKC315M	1800 1500 1200 1000	740* 633* 518 433	586* 502* 416 357	511 449 361 302+	488 418 345 295+	343 287 231+ 194+	347 291 234+ 196+	251 210 170+ 142+
2TKC355M	1800 1500 1200 1000	837* 675 564	713* 570 475	640 536 430 360+	640 535 430 359+	511 426 341 284+	402 337 271+ 227+	395 329 263+ 219+
2TKC400M	1800 1500 1200 1000	1221* 979 818	969* 776 646	890* 745 598 500	889* 744 598 499	664* 553 443 369	571* 478 385 323+	512* 427 342 285+

注：1.功率：功率為額定值，使用系數F_S=1.0。也制造功率更大的減速器。

2.潤滑：除根據齒輪圓周速度需要用壓潤滑或浸油潤滑之外，用飛濺潤滑。

3.冷卻：如果實際傳遞的機械功率大于熱功率需要用人工冷卻。

4.*表示要求壓力潤滑，+表示要求浸油潤滑。

熱功率

減速器型號	熱功率/kW
	P_TN 4＜i≤8	P_TN 8＜i≤20
2TKC90M 2TKC110M	22 32	25 36

2TKC140M 2TKC180M	48 71	55 82

2TKC225M 2TKC250M	106 153	122 175

2TKC280M 2TKC315M	197 242	226 277
2TKC355M 2TKC400M	305 382	350 438

注：P_TN=環境溫度+20℃時額定熱功率。

精確傳動比

減速器型號	精確傳動比i_ex
減速器型號	4.0	4.5	5.0	5.6	6.3	7.1	8.0	9.0
2TKC90M	3.9286	4.3750	4.9916	5.5588	6.4821	7.2188	7.7363	8.6154
2TKC110M	3.8942	4.3982	4.9480	5.5882	6.4385	7.2716	7.7885	8.7963
2TKC140M	3.9423	4.4271	5.0091	5.6250	6.5048	7.3047	7.8846	8.8542
2TKC180M	3.9583	4.3750	5.0000	5.5263	6.5313	7.2188	7.9167	8.7500
2TKC225M	3.9904	4.4271	5.0405	5.5921	6.5724	7.2917	7.9808	8.8542
2TKC250M	3.9423	4.3750	4.9798	5.5263	6.4932	7.2059	7.8846	8.7500
2TKC280M	3.9402	4.4656	4.9342	5.5921	6.4236	7.2801	7.8125	8.8542
2TKC315M	4.0453	4.5277	5.1944	5.8139	6.5498	7.3813	8.1278	9.0970
2TKC355M	3.9402	4.4130	5.0987	5.7105	6.5263	7.2188	8.0357	9.0000
2TKC400M	4.0284	4.5481	5.1785	5.8465	6.5263	7.3906	8.0569	9.0962

減速器型號	精確傳動比i_ex
減速器型號	10.0	11.2	12.5	14.0	16.0	18.0	20.0
2TKC90M	9.8462	11.083	12.667	14.151	16.000	17.875	20.109
2TKC110M	10.104	11.195	12.860	14.318	16.167	18.000	20.500
2TKC140M	9.8864	11.170	12.472	14.003	15.818	17.760	20.227
2TKC180M	10.109	11.136	12.866	14.394	16.174	18.095	20.357
2TKC225M	9.8864	11.170	12.472	13.987	15.818	17.739	20.203
2TKC250M	10.104	11.039	12.747	14.192	16.167	18.000	20.200
2TKC280M	9.8864	11.170	12.472	14.192	15.818	18.000	20.250
2TKC315M	10.249	11.400	12.759	14.192	16.182	18.000	20.320
2TKC355M	10.286	11.510	12.615	14.117	15.619	17.905	19.810
2TKC400M	10.154	11.423	12.615	14.192	16.070	18.000	20.381

3TKC140N～400N型三級錐齒輪—斜齒輪減速器

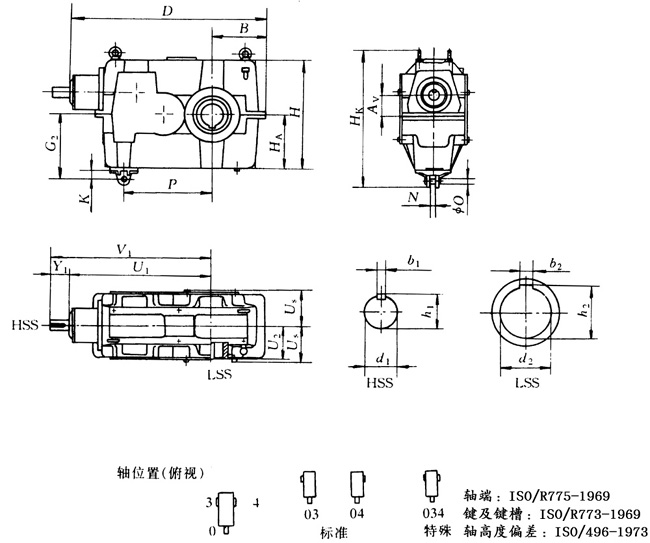

3TKC140N～400N型三級錐齒輪—斜齒輪減速器外形尺寸

外形尺寸

減速器型號	減速箱尺寸/mm												重量 /kg	油量 /L	軸尺寸/mm
	減速箱尺寸/mm														輸入軸
	A_V	B	D	G₂	H	H_A	H_K	K	N	O	P	U_S			U₁
3TKC140N 3TKC160N	70.1 77.1	160 175	561.4 625.5	223 243	360 400	180 200	481 521	28 28	20 20	22h9 22h9	250 285	114 131	105 145	7.6 10	401.4 450.5
3KTC180N 3TKC200N	86.7 86.6	205 225	711.1 800.0	273 298	450 500	225 250	585 635	28 28	20 20	22h9 22h9	320 360	139 149	200 280	14 20	506.1 575.0
3TKC225N 3TKC250N	96.7 110.7	255 281	907.5 1007.9	343 346	560 560	280 280	729 729	38 38	32 32	32h9 32h9	405 450	167 187	380 510	27 30	652.5 726.9
3TKC280N 3TKC315N	122.8 141.4	308 353	1120.8 1268.1	383 437	630 710	315 355	804 932	38 52	32 45	32h9 45h9	505 565	206 233	720 1000	42 57	812.8 915.1
3TKC355N 3TKC400N	158.0 175.2	400 448	1423.8 1596.5	487 542	800 900	400 450	1027 1132	52 52	45 45	45h9 45h9	635 715	256 286	1350 1900	77 104	1023.8 1148.5

減速器型號	軸尺寸/mm
	輸入軸															空心軸
	19＜i≤47					47＜i≤67					67＜i≤95					空心軸
	Y₁	V₁	d₁	b₁	h₁	Y₁	V₁	d₁	b₁	h₁	Y₁	V₁	d₁	b₁	h₁	U₂	d₂	b₂	h₂
3TKC140N 3TKC160N	58 58	459.4 508.5	30k6 35k6	8h9 10h9	33 38	36 42	437.4 492.5	22k6 25k6	6h9 8h9	24.5 28	28 28	429.4 478.5	16k6 18k6	5h9 6h9	18 20.5	100 118	70H8 80H8	20JS9 22JS9	74.9 85.4
3KTC180N 3TKC220N	82 82	588.1 647.0	40k6 45k6	12h9 14h9	43 48.5	58 58	564.1 633.0	30k6 35k6	8h9 10h9	33 38	36 36	542.1 611.0	20k6 22k6	6h9 6h9	22.5 24.5	125 135	90H8 100H8	25JS9 28JS9	95.4 106.4
3TKC225N 3TKC250N	82 82	734.5 808.9	50k6 55m6	14h9 16h9	53.5 59	82 82	734.5 808.9	40k6 45k6	12h9 14h9	43 48.5	42 58	694.5 784.9	25k6 30k6	8h9 8h9	28 33	154 172	110H8 120H8	28JS9 32JS9	116.4 127.4
3TKC280N 3TKC315N	105 105	917.8 1020.1	60m6 65m6	18h9 18h9	64 69	82 82	894.8 997.1	50k6 55m6	14h9 16h9	53.5 59	58 82	870.8 997.1	35k6 40k6	10h9 12h9	38 43	192 218	140H8 160H8	36JS9 40JS9	148.4 169.4
3TKC355N 3TKC400N	105 130	1128.8 1278.5	70m6 80m6	20h9 22h9	74.5 85	105 105	1128.8 1253.5	60m6 65m6	18h9 18h9	64 69	82 82	1105.8 1230.6	45k9 50k6	14h9 14h9	48.5 53.5	240 270	180H8 200H8	45JS9 45JS9	190.4 210.4

額定機械功率

減速器

型號

n₁/

(r/min)

額定機械功率P_N1/kW

公稱傳動比i_N

20

22.5

25

28

31.5

35.5

40

45

50

56

63

71

80

90

3TKC140N

1800

1500

1200

1000

32.6+

28.2+

22.6+

18.9+

31.8+

27.1+

21.7+

18.1+

29.9+

25.0+

20.0+

16.7+

25.7+

22.1+

17.7+

14.8+

24.5+

20.4+

16.4+

13.6+

17.5+

14.6+

11.7+

9.77+

15.1+

12.7+

10.2+

8.57+

13.8+

11.6+

9.34+

7.80+

12.0+

10.0+

8.10+

6.77+

10.9+

9.16+

7.34+

6.14+

9.87+

8.27+

6.67+

5.59+

7.91+

6.96+

5.85+

4.91+

7.91+

6.63+

5.35+

4.48+

7.06+

5.92+

4.77+

4.00+

3TKC160N

1800

1500

1200

1000

47.7+

39.9+

32.0+

26.7+

43.8+

36.8+

29.6+

24.9+

38.4+

32.1+

25.7+

21.4+

36.0+

30.1+

24.3+

20.4+

33.0+

27.7+

22.3+

18.7+

28.6+

24.0+

19.4+

16.2+

22.8+

19.0+

15.2+

12.7+

18.7+

15.6+

12.5+

10.4+

17.8+

14.9+

11.9+

9.93+

14.6+

12.2+

9.79+

8.18+

12.7+

10.6+

8.49+

7.12+

9.06+

7.97+

6.82+

6.00+

9.06+

7.97+

6.81+

5.71+

8.45+

7.43+

5.99+

5.02+

3TKC180N

1800

1500

1200

1000

68.2+

56.9+

45.7+

38.1+

64.6+

54.1+

43.6+

36.6+

55.5+

46.3+

37.1+

31.0+

53.4+

44.8+

36.1+

30.3+

43.4+

36.3+

29.1+

24.3+

41.0+

34.2+

27.4+

22.9+

37.2+

31.0+

24.9+

20.7+

30.4+

25.3+

20.3+

16.9+

29.3+

24.4+

19.6+

16.3+

24.0+

20.0+

16.0+

13.4+

20.7+

17.5+

14.0+

11.8+

18.9+

15.8+

12.7+

10.6+

16.6+

13.9+

11.2+

9.36+

14.1+

11.8+

9.55+

8.02+

3TKC200N

1800

1500

1200

1000

104+

88.4+

71.3+

59.8+

93.0+

77.7+

62.3+

52.0+

82.5+

69.0+

55.3+

46.2+

75.4+

63.0+

50.5+

42.1+

69.3+

57.8+

46.3+

38.6+

61.7+

52.9+

42.7+

35.6+

50.9+

43.6+

36.1+

30.9+

46.7+

39.1+

31.5+

26.4+

41.4+

34.8+

28.0+

23.5+

37.3+

31.3+

25.2+

21.1+

27.6+

23.1+

18.5+

15.5+

23.8+

20.9+

17.9+

15.5+

21.8+

18.2+

14.6+

12.3+

18.9+

15.8+

12.8+

10.7+

3TKC225N

1800

1500

1200

1000

132

116+

95.9+

79.9+

132

116+

95.9+

79.9+

131

110+

88.5+

74.3+

118+

98.6+

79.1+

66.1+

108+

90.9+

73.3+

61.4+

96.6+

81.4+

65.6+

55.0+

73.0+

60.9+

48.8+

40.7+

66.2+

55.2+

44.3+

36.9+

60.5+

50.7+

40.9+

34.3+

52.4+

43.7+

35.0+

29.3+

46.3+

38.6+

30.9+

25.9+

32.2+

28.3+

24.2+

21.3+

32.2+

28.3+

24.2+

20.6+

30.8+

25.8+

20.8+

17.4+

3TKC250N

1800

1500

1200

1000

215

185

153

132+

198

170

141

121+

176

151

125

108+

158

136+

113+

96.5+

146+

126+

104+

88.0+

135+

116+

95.6+

80.1+

120+

102+

81.5+

68.0+

109+

92.7+

74.7+

62.6+

95.8+

80.0+

64.1+

55.3+

87.6+

73.4+

59.2+

49.6+

74.9+

64.4+

53.5+

45.9+

57.3+

48.5+

39.0+

32.7+

57.3+

49.5+

39.9+

33.4+

43.9+

38.7+

33.1+

29.1+

3TKC280N

1800

1500

1200

1000

318

273

226

194+

283

243

202

172+

25

222

184

155+

226

194

158+

132+

207

178

142+

118+

190

161+

128+

107+

174

145+

116+

96.5+

153

128+

103+

86.1+

139+

116+

92.6+

77.2+

119+

102+

84.0+

70.4+

110+

94.3+

76.4+

64.0+

73.5+

64.7+

55.3+

46.4+

73.5+

64.7+

55.3+

46.9+

57.5+

48.2+

38.8+

32.5+

3TKC315N

1800

1500

1200

1000

443

380

315

270

406

348

289

248

371

318

264

227

325

279

232+

199+

297

255

211+

182+

276

237+

197+

169+

252

217+

180+

154+

229

191+

154+

128+

208+

174+

140+

117+

182+

152+

122+

102+

145+

122+

98.1+

82.2+

115+

96.4+

77.6+

65.0+

115+

96.4+

77.7+

65.1+

95.2+

79.7+

64.2+

53.8

3TKC355N

1800

1500

1200

1000

647*

566

469

391

605*

519

430

369

537*

461

382

321

484

415

345

296+

430

367

295

247+

411

353

293+

247+

362

303

244+

204+

319

267

214+

179+

271

226+

182+

152+

247

210+

168+

140+

226

190+

152+

126+

130+

115+

98.1+

86.4+

130+

115+

98.1+

86.4+

114+

95.9+

77.3+

64.8+

3TKC400N

1800

1500

1200

1000

841*

714

587

501

750*

638

526

450

680*

579

478

410

594

508

423

365+

540

462

383

329+

502

430

357+

308+

457

392

326+

281+

410

352

293+

249+

378

316

254+

212+

358

309+

254+

212+

321

275+

230+

193+

215+

189+

159+

133+

204+

179+

153+

135+

187+

157+

126+

106+

注：1.功率：功率為額定值，使用系數F_S=1.0。也制造功率更大的減速器。

2.潤滑：除根據齒輪圓周速度需要用壓力潤滑或浸油潤滑之外，用飛濺潤滑。

3.冷卻：如果實際傳遞的機械功率大于熱功率需要用人工冷卻。

4.*表示要求壓力潤滑，+表示要求浸油潤滑。

熱功率

減速機型號	熱功率/kW
減速機型號	P_TN 20＜i≤40	P_TN 40＜i≤90
3TKC140N 3TKC160N	29 36	31 39
3TKC180N 3TKC200N	44 55	48 60
3TKC225N 3TKC250N	78 92	85 100
3TKC280N 3TKC315N	114 142	125 155
3TKC355N 3TKC400N	174 215	190 235

注：P_TN=環境溫度20℃時額定熱功率。

精確傳動比

減速器型號	精確傳動比i_ex
減速器型號	20	22.5	25	28	31.5	35.5	40	45	50	56	63	71	80	90
3TKC140N	20.785	23.063	25.375	27.955	30.758	35.662	40.039	43.973	50.959	55.966	62.395	70.357	78.440	88.245
3TKC160N	20.733	23.091	25.080	27.932	30.842	34.202	38.627	44.371	49.162	56.472	62.876	70.993	79.044	90.022
3TKC180N	20.730	23.685	25.127	28.709	32.069	35.568	39.793	45.709	50.200	57.664	64.203	73.135	81.429	92.738
3TKC200N	20.758	23.571	25.161	28.571	31.539	35.417	39.545	43.665	49.334	55.085	61.847	69.864	78.440	89.334
3TKC225N	20.855	23.005	25.499	27.828	30.845	34.817	39.150	43.904	49.257	55.387	61.420	70.247	77.898	88.717
3TKC250N	20.263	22.396	25.874	29.255	32.083	35.461	40.967	45.833	52.140	58.333	63.873	71.772	80.298	90.335
3TKC280N	19.649	22.632	25.263	29.563	33.000	36.311	40.533	44.756	50.667	56.296	62.160	71.111	78.518	89.424
3TKC315N	20.458	22.697	25.343	29.596	33.046	35.938	40.127	45.000	50.622	56.769	63.639	71.973	80.713	91.923
3TKC355N	19.919	22.105	25.526	28.824	33.284	35.000	40.417	45.000	50.987	56.652	63.077	71.852	80.000	90.000
3TKC400N	20.027	22.697	25.343	29.549	32.993	35.938	40.127	45.662	50.622	54.738	62.288	69.424	79.000	88.875
